6GHz Portable Spectrum Analyzer, Tracking Generator

RF measurement you can carry to the job site.

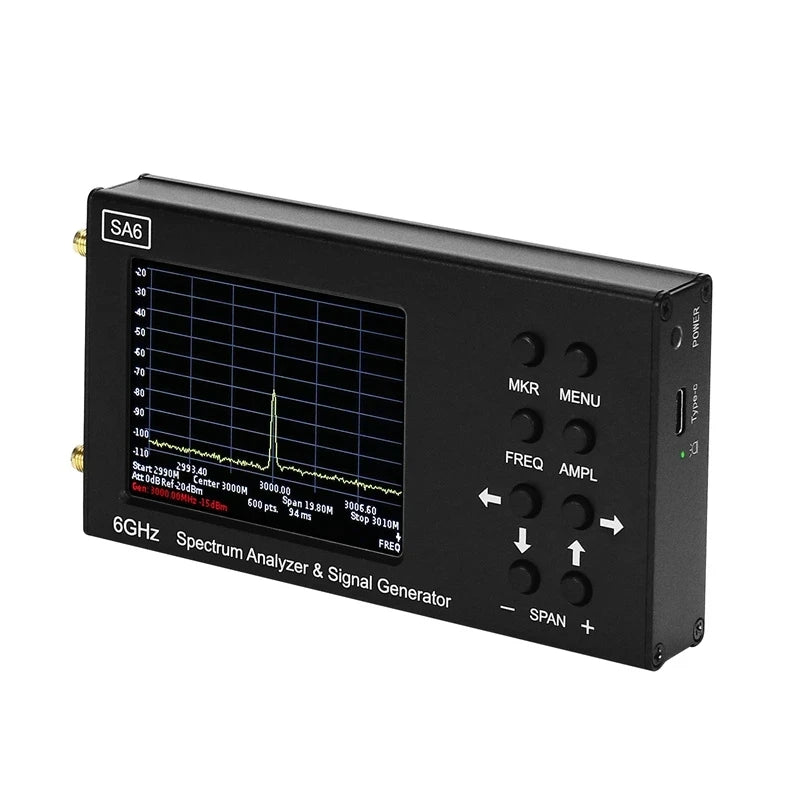

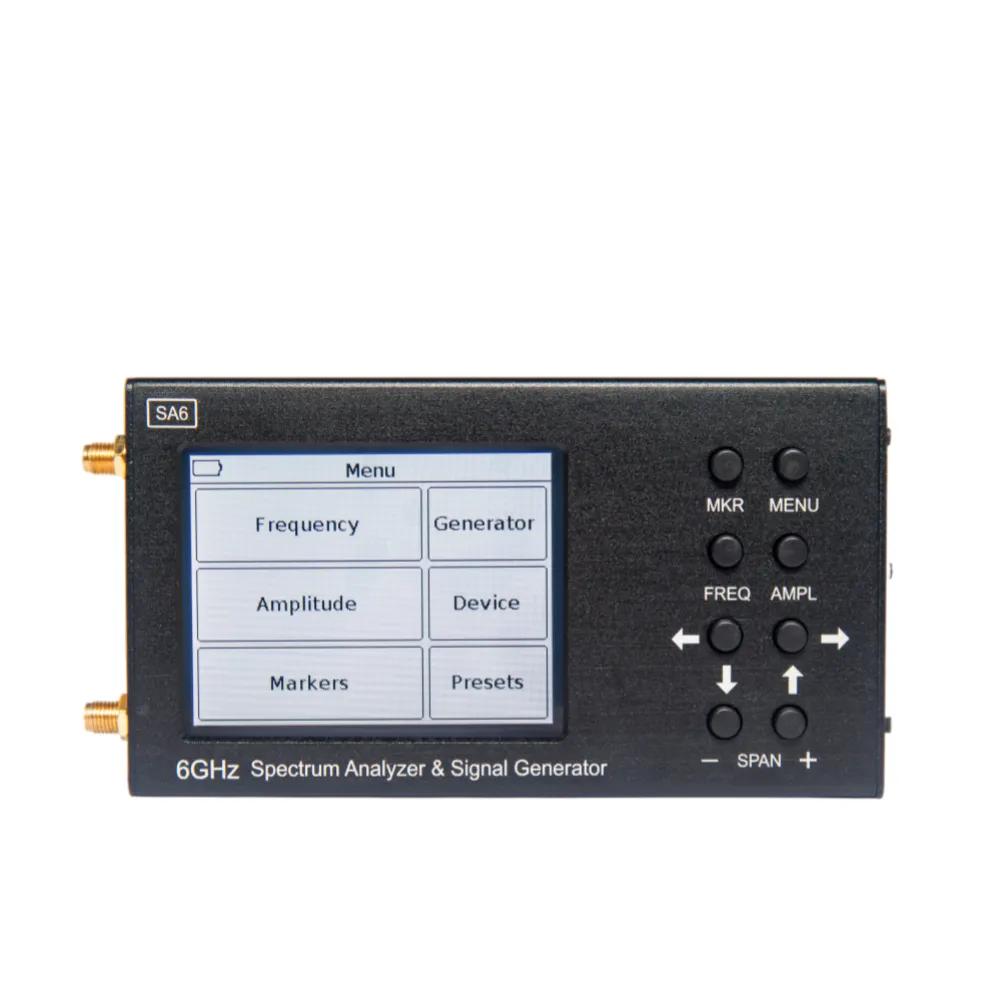

The SA6 covers 35-6200 MHz and shows frequency and amplitude for signals across Wi-Fi, 2G, 3G, 4G LTE, CDMA, DCS, GSM, GPRS, and GLONASS systems. It has a 3.2" color resistive touch screen, physical keys, and USB connectivity for standalone or PC-assisted work. A dynamic range up to 75 dB and a noise floor down to -90 dBm (below 3 GHz) help it pick out weak or interfering signals. The built-in tracking generator measures frequency response for filters, amplifiers, and other RF parts.

Why we picked it

• Broad coverage - 35-6200 MHz spans cellular, Wi-Fi, and satellite-related bands in one unit.
• Tracking generator - Characterize filters, amplifiers, and cables without extra bench gear.
• Field ready - Battery power and USB/PC support suit commissioning and troubleshooting on site.

Good to know

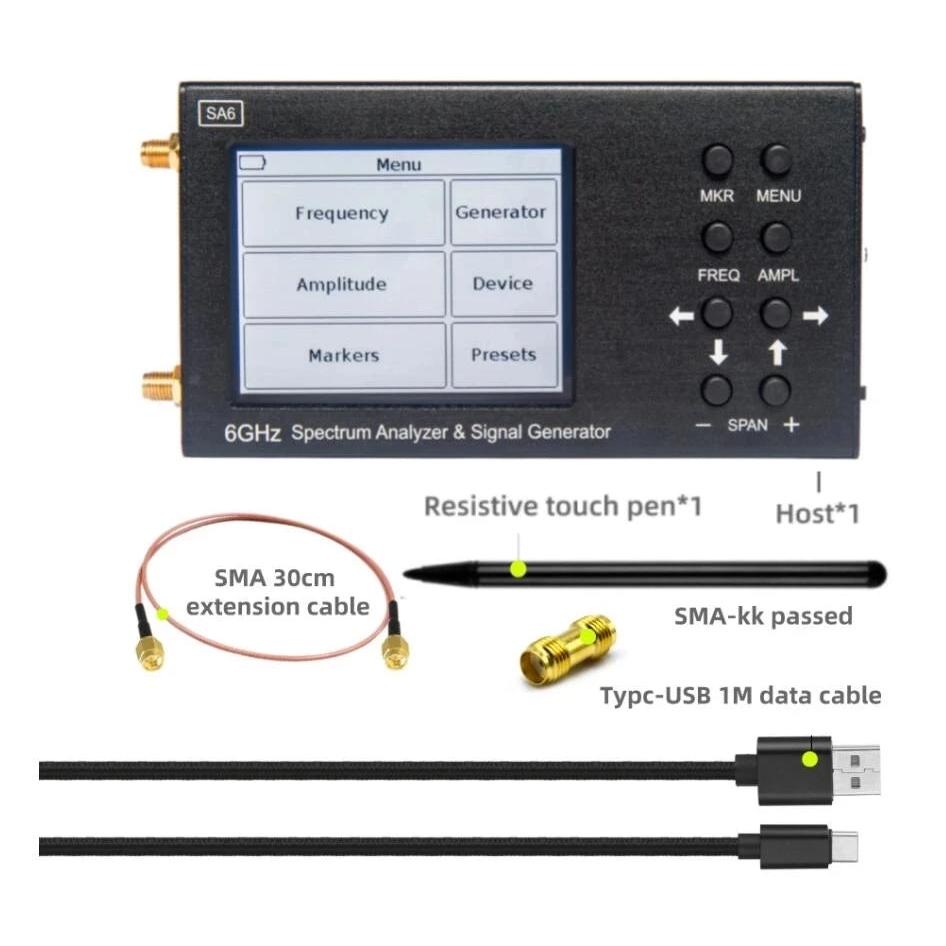

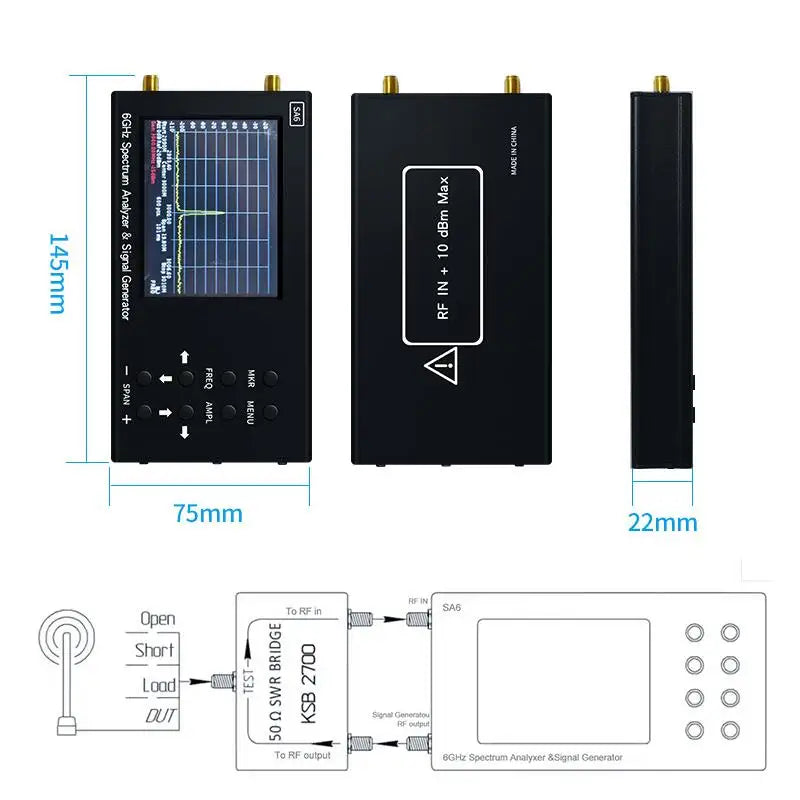

Used with an external directional coupler, it supports SWR and return loss measurements. A 2500 mAh rechargeable battery charges over USB-C and runs up to about 4 hours. The box includes the SA6 analyzer with tracking generator, a resistive touch pen, an SME 30 cm extension cable, and a USB Type-C cable.

Common questions

Q: What is the frequency range?
A: The display range is 35-6200 MHz, with a measurement range of 35-4500 MHz and a maximum span of 6165 MHz.

Q: Can it measure SWR and return loss?
A: Yes, with an external directional coupler and the right calibration standards, using the included software.

Q: How is it powered?
A: By an internal 2500 mAh battery that charges over USB Type-C, running up to about 4 hours.

Q: Does it connect to a PC?
A: Yes. Over USB to a Windows computer for real-time display, control, and logging.
