Digital Dual-Axis Inclinometer, Rechargeable Angle Gauge

Read angles on two planes at once, then charge it from any USB port.

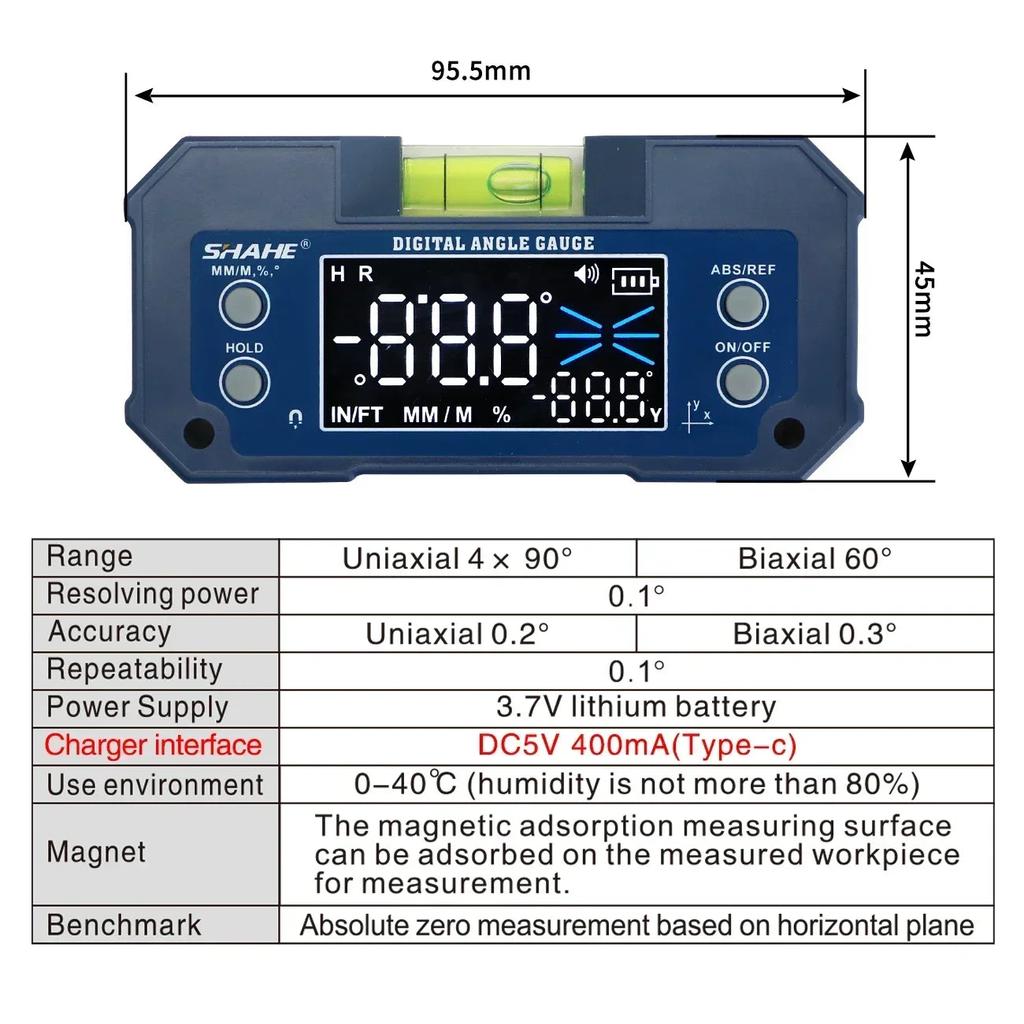

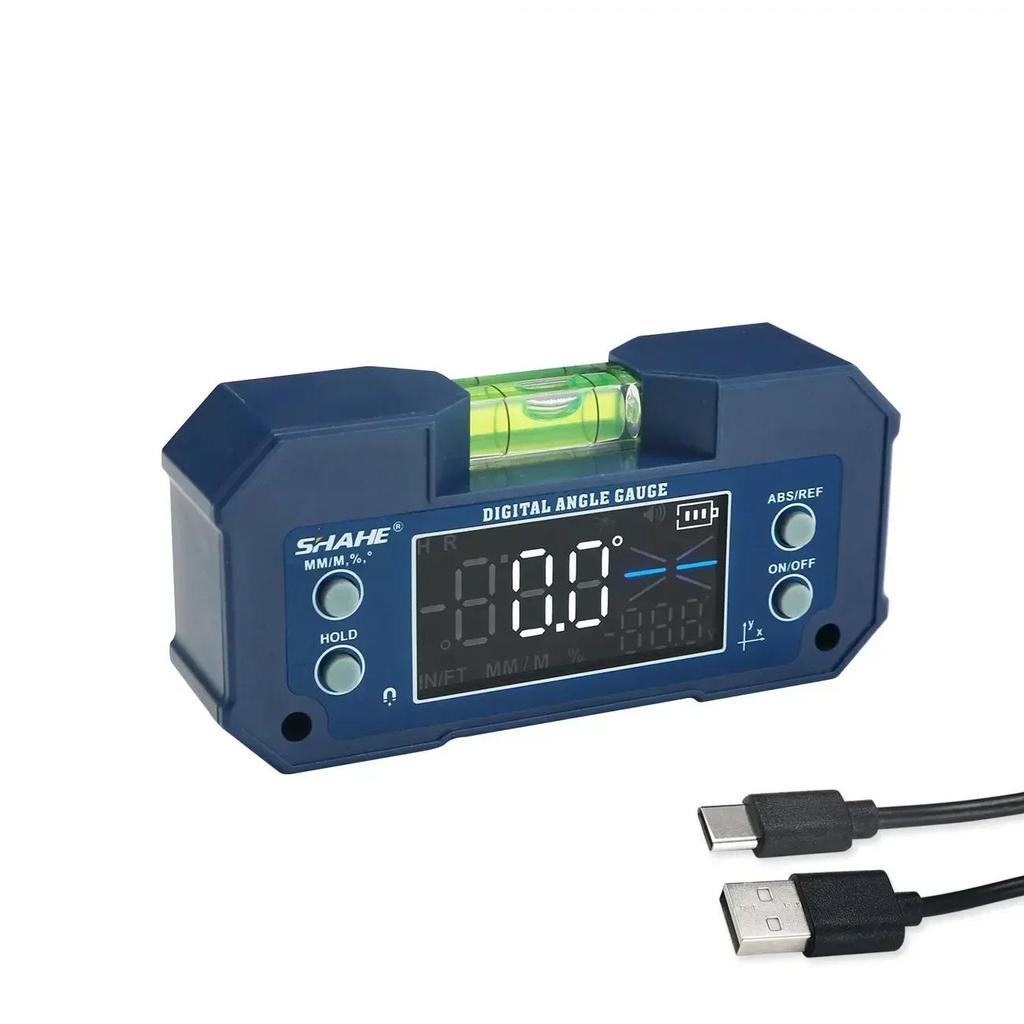

This digital inclinometer brings dual-axis measurement, an electronic protractor, and a bevel box together in one tool about 9.5 x 4.5 cm. It suits construction, woodworking, metalworking, installation, and automotive alignment where repeatable readings matter. The backlit LCD gives instant feedback in dim or tight spaces, and a horizontal bubble vial adds a visual check alongside the digital number. Built-in magnets grip miter, band, and table saw blades and other ferrous surfaces for steadier readings.

Why we picked it

• Two planes at once - Dual-axis measurement with absolute and relative modes for precise setup and alignment.
• Charges easily - A Type-C port takes power from chargers, power banks, or USB ports, plus auto shut-off.

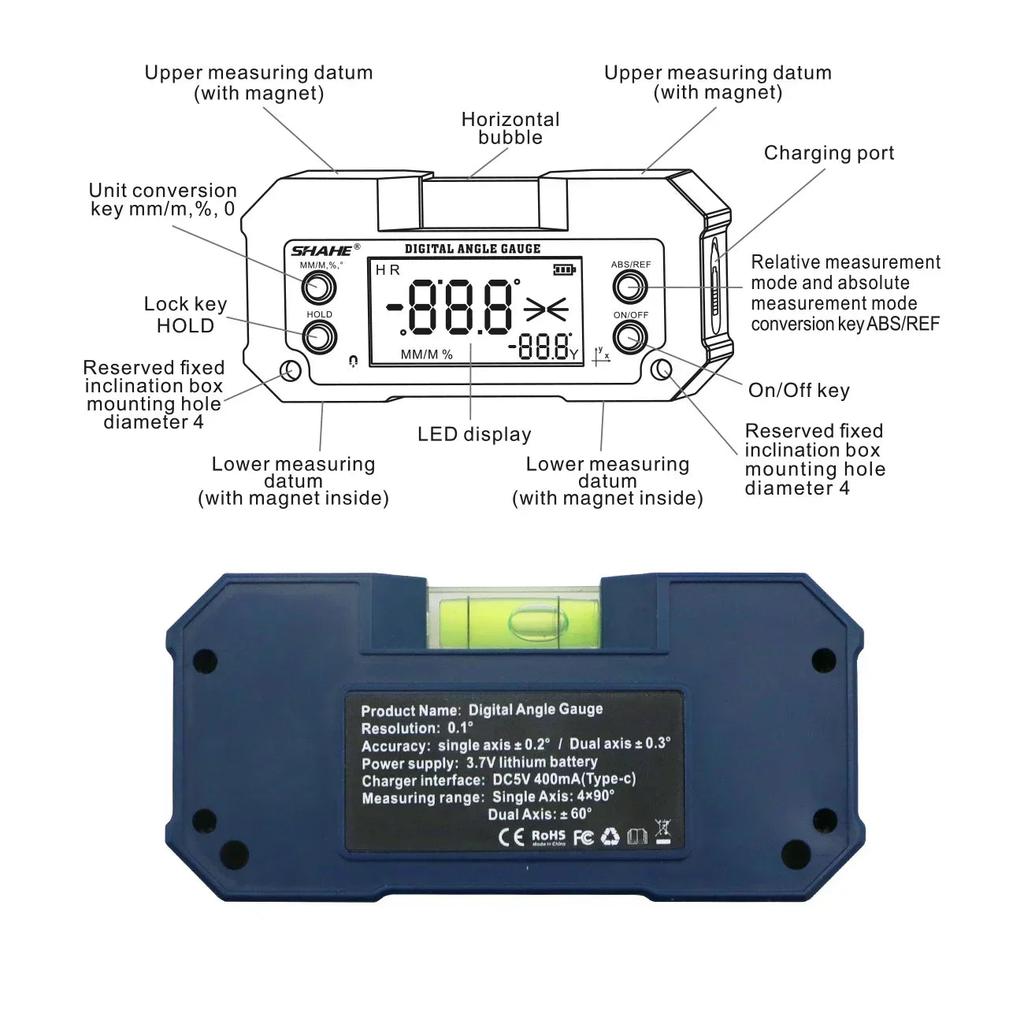

• Readable and handy - Backlit LCD, data hold, unit conversion, and a magnetic base speed up the work.

Good to know

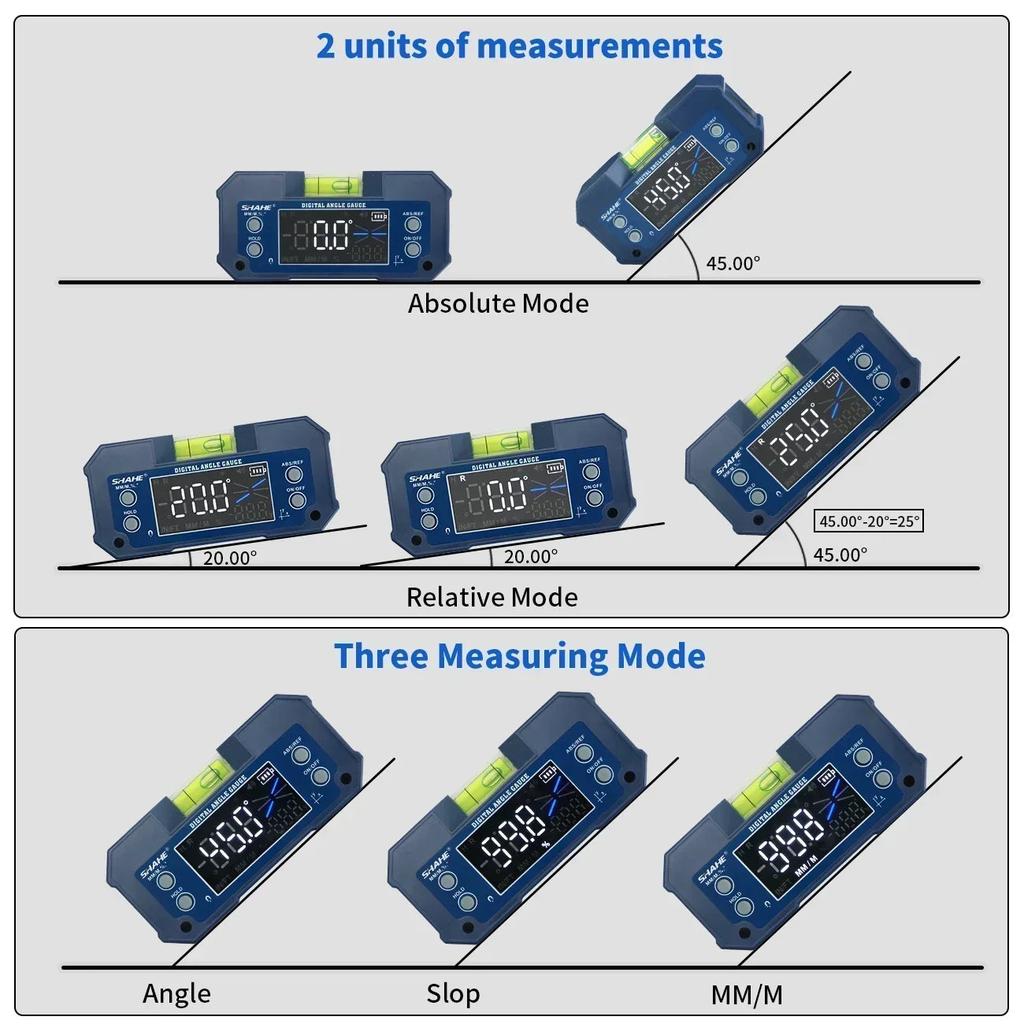

Absolute mode reads the true angle against level; relative mode zeros on a reference surface to measure the difference between two surfaces. The interface converts between mm/m, angle, and slope, holds a reading on screen, and offers a dual display: single-axis shows X only, while dual-axis shows both X and Y at once. The plastic housing is light for one-handed use. Note: only model 5346-L includes built-in wireless transmission, so confirm the version you need before ordering.

Common questions

Q: Can it stick to saw blades and metal?

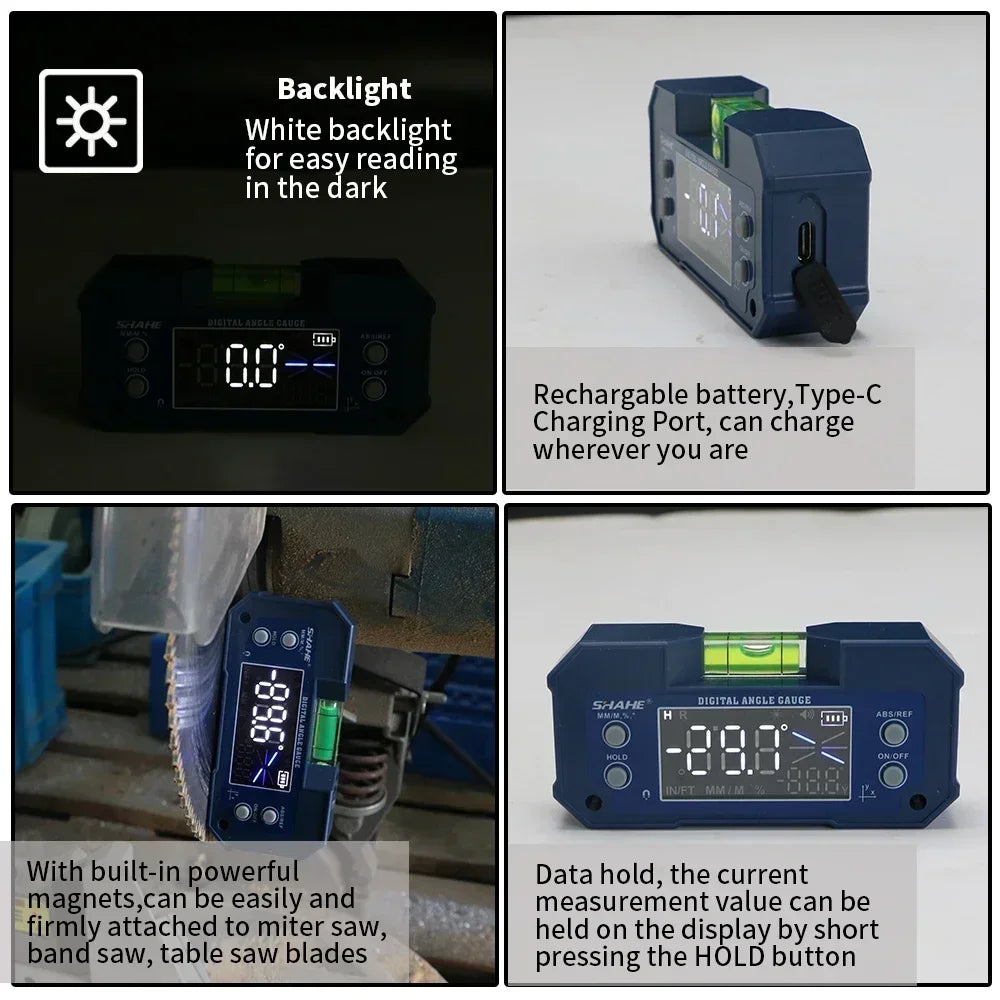

A: Yes. Built-in magnets hold it to miter, band, and table saw blades and other ferrous surfaces for stable readings.

Q: What is the difference between absolute and relative modes?
A: Absolute reads against true level. Relative zeros on any surface, then measures the difference to another, which helps you match or transfer angles.

Q: How does it charge?
A: Through a Type-C port, from standard USB chargers, power banks, or other USB sources.

Q: Do all models include wireless transmission?
A: No. Only the 5346-L version has it, so check the model before you buy.
